tlMorph.h File Reference

---

Detailed Description

Internal morphological routines.

#include "tlVision.h"

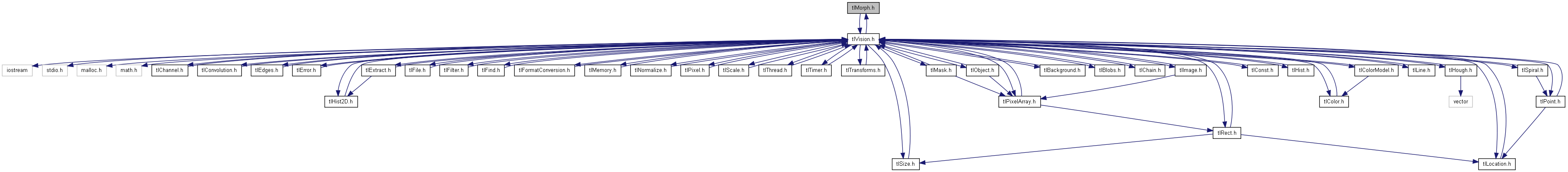

Include dependency graph for tlMorph.h:

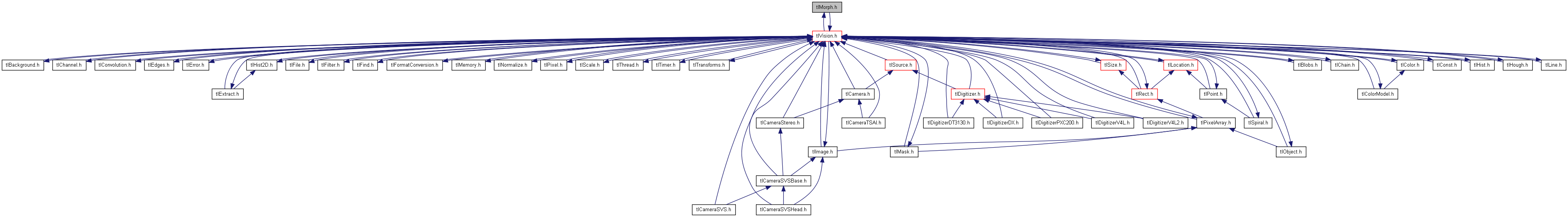

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	tl_thin (tlPixel *src, int width, int height, tlRect *rect, tlPixel *dest)
int	tl_thin_hitandmiss (tlPixel *src, int width, int height, tlPixel *kernel, tlRect *rect, tlPixel *dest)
int	tl_erode_all (tlPixel *src, int width, int height, int pixel_width, int size, tlRect *rect, tlPixel *dest)
int	tl_erode_gray (tlPixel *src, int width, int height, int size, tlRect *rect, tlPixel *dest)
int	tl_erode_bin (tlPixel *src, int width, int height, int size, tlRect *rect, tlPixel *dest)
int	tl_dilate_all (tlPixel *src, int width, int height, int pixel_width, int size, tlRect *rect, tlPixel *dest)
int	tl_dilate_gray (tlPixel *src, int width, int height, int size, tlRect *rect, tlPixel *dest)
int	tl_dilate_bin (tlPixel *src, int width, int height, int size, tlRect *rect, tlPixel *dest)

---

Function Documentation

int tl_dilate_all	(	tlPixel *	src,
		int	width,
		int	height,
		int	pixel_width,
		int	size,
		tlRect *	rect,
		tlPixel *	dest
	)

Perform morphological dilatation on all channels of a pixel array using a square pattern as an dilatating shape.

Parameters:

	src	pixel array (of the appropriate format)
	width	image width [pix]
	height	image height [pix]
	pixel_width	pixel width
	size	size of the square mask to use
	rect	portion of the image to dilate
	dest	[out] destination array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_dilate_bin	(	tlPixel *	src,
		int	width,
		int	height,
		int	size,
		tlRect *	rect,
		tlPixel *	dest
	)

Perform morphological dilatation on a BIN pixel array using a square pattern as an dilatating shape.

Parameters:

	src	pixel array (of the appropriate format)
	width	image width [pix]
	height	image height [pix]
	size	size of the square mask to use
	rect	portion of the image to dilate
	dest	[out] destination array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_dilate_gray	(	tlPixel *	src,
		int	width,
		int	height,
		int	size,
		tlRect *	rect,
		tlPixel *	dest
	)

Perform morphological dilatation on a GRAYpixel array using a square pattern as an dilatating shape.

Parameters:

	src	pixel array (of the appropriate format)
	width	image width [pix]
	height	image height [pix]
	size	size of the square mask to use
	rect	portion of the image to dilate
	dest	[out] destination array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_erode_all	(	tlPixel *	src,
		int	width,
		int	height,
		int	pixel_width,
		int	size,
		tlRect *	rect,
		tlPixel *	dest
	)

Perform morphological erosion on each channel of a pixel array using a square pattern as an eroding shape.

Parameters:

	src	pixel array (of the appropriate format)
	width	image width [pix]
	height	image height [pix]
	pixel_width	pixel width
	size	size of the square mask to use
	rect	portion of the image to erode
	dest	[out] destination array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_erode_bin	(	tlPixel *	src,
		int	width,
		int	height,
		int	size,
		tlRect *	rect,
		tlPixel *	dest
	)

Perform morphological erosion on a BIN pixel array using a square pattern as an eroding shape.

Parameters:

	src	pixel array (of the appropriate format)
	width	image width [pix]
	height	image height [pix]
	size	size of the square mask to use
	rect	portion of the image to erode
	dest	[out] destination array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_erode_gray	(	tlPixel *	src,
		int	width,
		int	height,
		int	size,
		tlRect *	rect,
		tlPixel *	dest
	)

Perform morphological erosion on a GRAY pixel array using a square pattern as an eroding shape.

Parameters:

	src	pixel array (of the appropriate format)
	width	image width [pix]
	height	image height [pix]
	size	size of the square mask to use
	rect	portion of the image to erode
	dest	[out] destination array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_thin	(	tlPixel *	src,
		int	width,
		int	height,
		tlRect *	rect,
		tlPixel *	dest
	)

Perform skeletonization on a BIN pixel array.

Parameters:

	src	pixel array (of the appropriate format)
	width	image width [pix]
	height	image height [pix]
	rect	portion of the image to dilate
	dest	[out] destination array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_thin_hitandmiss	(	tlPixel *	src,
		int	width,
		int	height,
		tlPixel *	kernel,
		tlRect *	rect,
		tlPixel *	dest
	)			[inline]

Perform morphological thinning on a BIN pixel array.

Parameters:

	src	pixel array (of the appropriate format)
	width	image width [pix]
	height	image height [pix]
	kernel	thinning kernel
	rect	portion of the image to dilate
	dest	[out] destination array

Returns:

0 on success, -1 otherwise.
See error management for details.

---
