tlFilter.h File Reference

---

Detailed Description

Internal filter routines.

#include "tlVision.h"

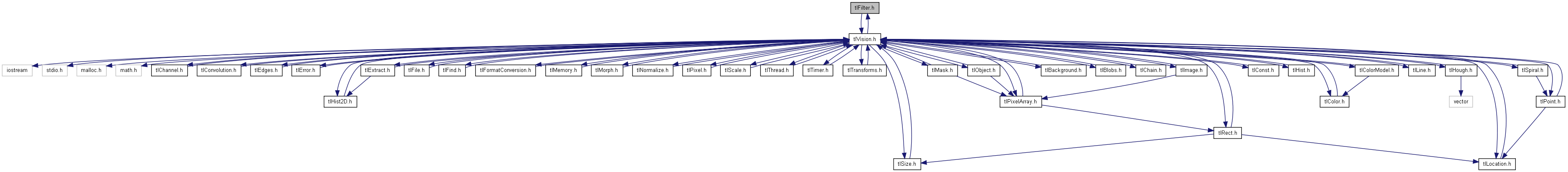

Include dependency graph for tlFilter.h:

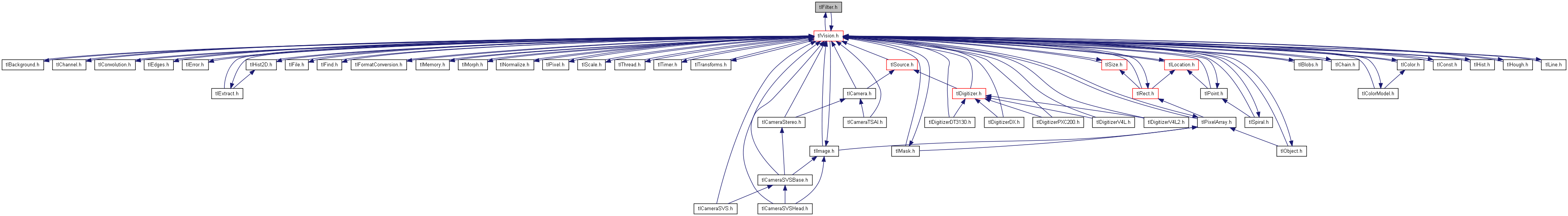

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	tl_filter_rgb (tlPixel *src, int width, int height, tlPixel r_min, tlPixel r_max, tlPixel g_min, tlPixel g_max, tlPixel b_min, tlPixel b_max, tlRect *rect, tlPixel *dest, tlPixel *mask=NULL)
int	tl_filter_hsi (tlPixel *src, int width, int height, tlPixel h1_min, tlPixel h1_max, tlPixel h2_min, tlPixel h2_max, tlPixel s_min, tlPixel s_max, tlPixel i_min, tlPixel i_max, tlRect *rect, tlPixel *dest, tlPixel *mask=NULL)
int	tl_filter_nrg (tlPixel *src, int width, int height, tlPixel nr_min, tlPixel nr_max, tlPixel ng_min, tlPixel ng_max, tlRect *rect, tlPixel *dest, tlPixel *mask=NULL)
int	tl_filter_gray (tlPixel *src, int width, int height, tlPixel intensity_min, tlPixel intensity_max, tlRect *rect, tlPixel *dest, tlPixel *mask=NULL)
int	tl_filter_hrgray (tlHRPixel *src, int width, int height, tlHRPixel intensity_min, tlHRPixel intensity_max, tlRect *rect, tlHRPixel *dest, tlPixel *mask=NULL)
int	tl_extract_color_rgb (tlPixel *src, int width, int height, tlColor *minColor, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_min_rgb (tlPixel *src, int width, int height, tlColor *minColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_max_rgb (tlPixel *src, int width, int height, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_yuv (tlPixel *src, int width, int height, tlColor *minColor, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_min_yuv (tlPixel *src, int width, int height, tlColor *minColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_max_yuv (tlPixel *src, int width, int height, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_hsi (tlPixel *src, int width, int height, tlColor *minColor, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_min_hsi (tlPixel *src, int width, int height, tlColor *minColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_max_hsi (tlPixel *src, int width, int height, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_nrg (tlPixel *src, int width, int height, tlColor *minColor, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_min_nrg (tlPixel *src, int width, int height, tlColor *minColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_max_nrg (tlPixel *src, int width, int height, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_gray (tlPixel *src, int width, int height, tlColor *minColor, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_min_gray (tlPixel *src, int width, int height, tlColor *minColor, tlRect *rect, tlPixel *mask=NULL)
int	tl_extract_color_max_gray (tlPixel *src, int width, int height, tlColor *maxColor, tlRect *rect, tlPixel *mask=NULL)

---

Function Documentation

int tl_extract_color_gray	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the color boundaries of a portion of an GRAY image; color boundaries take the same format as the input image.

Parameters:

	src	GRAY pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	maxColor	[out] upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_hsi	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the color boundaries of a portion of an HSI image; color boundaries take the same format as the input image.

Parameters:

	src	HSI pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	maxColor	[out] upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_max_gray	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the upper color boundary of a portion of an GRAY image; color boundaries take the same format as the input image.

Parameters:

	src	GRAY pixel array to be processed
	width	input image width
	height	input image height
	maxColor	upper color boundary
	rect	portion of the image to process
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_max_hsi	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the upper color boundary of a portion of an HSI image; color boundaries take the same format as the input image.

Parameters:

	src	HSI pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	maxColor	[out] upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_max_nrg	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the upper color boundary of a portion of an NRG image; color boundaries take the same format as the input image.

Parameters:

	src	NRG pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	maxColor	[out] upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_max_rgb	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the upper color boundary of a portion of an RGB image; color boundaries take the same format as the input image.

Parameters:

	src	RGB pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	maxColor	upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_max_yuv	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the upper color boundary of a portion of an YUV image; color boundaries take the same format as the input image.

Parameters:

	src	YUV pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	maxColor	upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_min_gray	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the lower color boundary of a portion of an GRAY image; color boundaries take the same format as the input image.

Parameters:

	src	GRAY pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_min_hsi	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the lower color boundary of a portion of an HSI image; color boundaries take the same format as the input image.

Parameters:

	src	HSI pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_min_nrg	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the lower color boundary of a portion of an NRG image; color boundaries take the same format as the input image.

Parameters:

	src	NRG pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] minColor lower color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_min_rgb	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the lower color boundary of a portion of an RGB image; color boundaries take the same format as the input image.

Parameters:

	src	RGB pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_min_yuv	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the lower color boundary of a portion of an YUV image; color boundaries take the same format as the input image.

Parameters:

	src	YUV pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_nrg	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the color boundaries of a portion of an NRG image; color boundaries take the same format as the input image.

Parameters:

	src	NRG pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	maxColor	[out] upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_rgb	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the color boundaries of a portion of an RGB image; color boundaries take the same format as the input image.

Parameters:

	src	RGB pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	maxColor	[out] upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_extract_color_yuv	(	tlPixel *	src,
		int	width,
		int	height,
		tlColor *	minColor,
		tlColor *	maxColor,
		tlRect *	rect,
		tlPixel *	mask
	)

Extract the color boundaries of a portion of an YUV image; color boundaries take the same format as the input image.

Parameters:

	src	YUV pixel array to be processed
	width	input image width
	height	input image height
	rect	portion of the image to process
	minColor	[out] lower color boundary
	maxColor	[out] upper color boundary
	mask	binary mask that indicates which pixels to take into account

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_filter_gray	(	tlPixel *	src,
		int	width,
		int	height,
		tlPixel	intensity_min,
		tlPixel	intensity_max,
		tlRect *	rect,
		tlPixel *	dest,
		tlPixel *	mask
	)

Filter a GRAY image using two color boundaries.

Parameters:

	src	GRAY pixel array to be filtered
	width	image width
	height	image height
	intensity_min	lower channel boundaries [0..255]
	intensity_max	upper channel boundaries [0..255]
	rect	portion of the image to process
	mask	mask for the given area (must be same size as image size)
	dest	[out] filtered pixel array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_filter_hrgray	(	tlHRPixel *	src,
		int	width,
		int	height,
		tlHRPixel	intensity_min,
		tlHRPixel	intensity_max,
		tlRect *	rect,
		tlHRPixel *	dest,
		tlPixel *	mask
	)

Filter a HRGRAY image using two color boundaries.

Parameters:

	src	GRAY pixel array to be filtered
	width	image width
	height	image height
	intensity_min	lower channel boundaries [0..255]
	intensity_max	upper channel boundaries [0..255]
	rect	portion of the image to process
	mask	mask for the given area (must be same size as image size)
	dest	[out] filtered pixel array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_filter_hsi	(	tlPixel *	src,
		int	width,
		int	height,
		tlPixel	h1_min,
		tlPixel	h1_max,
		tlPixel	h2_min,
		tlPixel	h2_max,
		tlPixel	s_min,
		tlPixel	s_max,
		tlPixel	i_min,
		tlPixel	i_max,
		tlRect *	rect,
		tlPixel *	dest,
		tlPixel *	mask
	)

Filter an HSI image using two color boundaries.

Parameters:

	src	HSI pixel array to be filtered
	width	image width
	height	image height
	h1_min	lower channel boundaries [0..255]
	h1_max	upper channel boundaries [0..255]
	h2_min	lower channel boundaries [0..255]
	h2_max	upper channel boundaries [0..255]
	s_min	lower channel boundaries [0..255]
	s_max	upper channel boundaries [0..255]
	i_min	lower channel boundaries [0..255]
	i_max	upper channel boundaries [0..255]
	rect	portion of the image to process
	mask	mask for the given area (must be same size as image size)
	dest	[out] filtered pixel array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_filter_nrg	(	tlPixel *	src,
		int	width,
		int	height,
		tlPixel	nr_min,
		tlPixel	nr_max,
		tlPixel	ng_min,
		tlPixel	ng_max,
		tlRect *	rect,
		tlPixel *	dest,
		tlPixel *	mask
	)

Filter an NRG image using two color boundaries.

src NRG pixel array to be filtered nr_min lower channel boundaries [0..255] nr_max upper channel boundaries [0..255] ng_min lower channel boundaries [0..255] ng_max upper channel boundaries [0..255] rect portion of the image to process mask mask for the given area (must be same size as image size) dest [out] filtered pixel array

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_filter_rgb	(	tlPixel *	src,
		int	width,
		int	height,
		tlPixel	r_min,
		tlPixel	r_max,
		tlPixel	g_min,
		tlPixel	g_max,
		tlPixel	b_min,
		tlPixel	b_max,
		tlRect *	rect,
		tlPixel *	dest,
		tlPixel *	mask
	)

Filter an RGB image using two color boundaries.

Parameters:

	src	RGB pixel array to be filtered
	width	image width
	height	image height
	r_min	lower channel boundaries [0..255]
	r_max	upper channel boundaries [0..255]
	g_min	lower channel boundaries [0..255]
	g_max	upper channel boundaries [0..255]
	b_min	lower channel boundaries [0..255]
	b_max	upper channel boundaries [0..255]
	rect	portion of the image to process
	mask	mask for the given area (must be same size as image size)
	dest	[out] filtered pixel array

Returns:

0 on success, -1 otherwise.
See error management for details.

---

TLIB documentation - generated on 7 May 2008
Please address any questions to seb@tuyphon.com
(C) 2001-2008 - S. Grange
(C) 2001-2007 - VRAI Group, EPFL
All Rights Reserved.
