tlEdges.h File Reference

---

Detailed Description

Internal edges operators.

#include "tlVision.h"

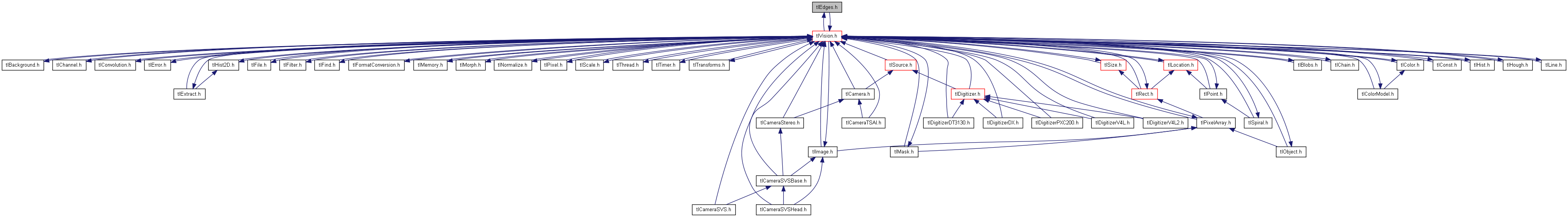

Include dependency graph for tlEdges.h:

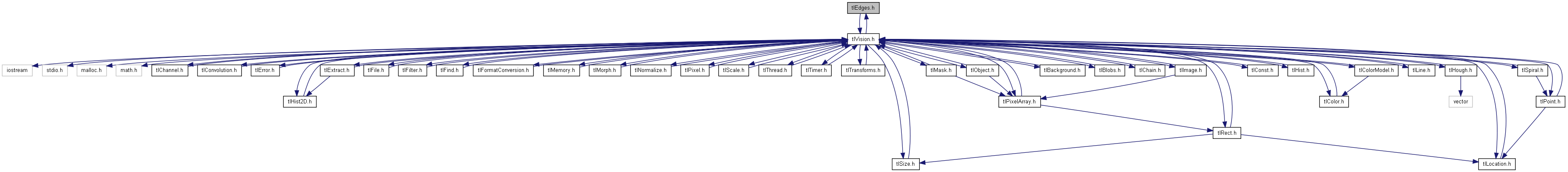

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	TL_EDGES_BIN   0
#define	TL_EDGES_MORPH   1
#define	TL_EDGES_SOBEL   2
#define	TL_EDGES_PREWITT   3
Functions
int	tl_edges_bin (tlPixel *src, int width, int height, tlRect *rect, tlPixel *dest)
int	tl_edges_vert_sobel (tlPixel *src, int width, int height, int pixel_width, tlRect *rect, tlPixel *dest)
int	tl_edges_vert_prewitt (tlPixel *src, int width, int height, int pixel_width, tlRect *rect, tlPixel *dest)
int	tl_edges_hor_sobel (tlPixel *src, int width, int height, int pixel_width, tlRect *rect, tlPixel *dest)

---

Define Documentation

#define TL_EDGES_BIN   0

Method tag for edges extraction.
BIN image edge extraction.

See also:

tlImage::edges()

#define TL_EDGES_MORPH   1

Method tag for edges extraction.
Morphological-based edge extraction.

See also:

tlImage::edges()

#define TL_EDGES_PREWITT   3

Method tag for edges extraction.
Prewitt convolution image edge extraction.

See also:

tlImage::edges()

#define TL_EDGES_SOBEL   2

Method tag for edges extraction.
Sobel convolution edge extraction.

See also:

tlImage::edges()

---

Function Documentation

int tl_edges_bin	(	tlPixel *	src,
		int	width,
		int	height,
		tlRect *	rect,
		tlPixel *	dest
	)

Binary image edge detection.

Parameters:

	src	pixel array containing image to convert
	width	image width
	height	image height
	rect	portion of the image to process
	dest	[out] pixel array containing the edge map

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_edges_hor_sobel	(	tlPixel *	src,
		int	width,
		int	height,
		int	pixel_width,
		tlRect *	rect,
		tlPixel *	dest
	)

Horizontal image edge detection using the Sobel operator.

Parameters:

	src	pixel array containing image to convert
	width	image width
	height	image height
	pixel_width	pixel width
	rect	portion of the image to process
	dest	[out] pixel array containing the edge map

Returns:

0 on success, -1 otherwise. See error management for details.

int tl_edges_vert_prewitt	(	tlPixel *	src,
		int	width,
		int	height,
		int	pixel_width,
		tlRect *	rect,
		tlPixel *	dest
	)

Vertical image edge detection using the Prewitt operator.

Parameters:

	src	pixel array containing image to convert
	width	image width
	height	image height
	pixel_width	pixel width
	rect	portion of the image to process
	dest	[out] pixel array containing the edge map

Returns:

0 on success, -1 otherwise.
See error management for details.

int tl_edges_vert_sobel	(	tlPixel *	src,
		int	width,
		int	height,
		int	pixel_width,
		tlRect *	rect,
		tlPixel *	dest
	)

Vertical image edge detection using the Sobel operator.

Parameters:

	src	pixel array containing image to convert
	width	image width
	height	image height
	pixel_width	pixel width
	rect	portion of the image to process
	dest	[out] pixel array containing the edge map

Returns:

0 on success, -1 otherwise.
See error management for details.

---
